MSRP: $3200

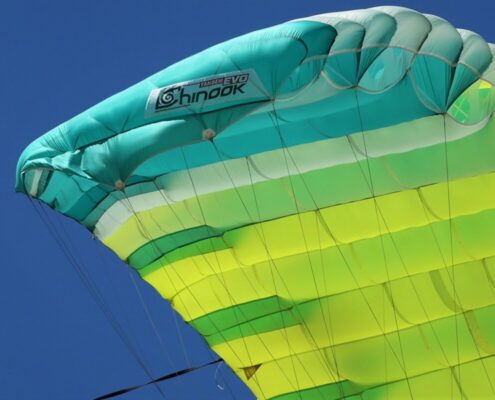

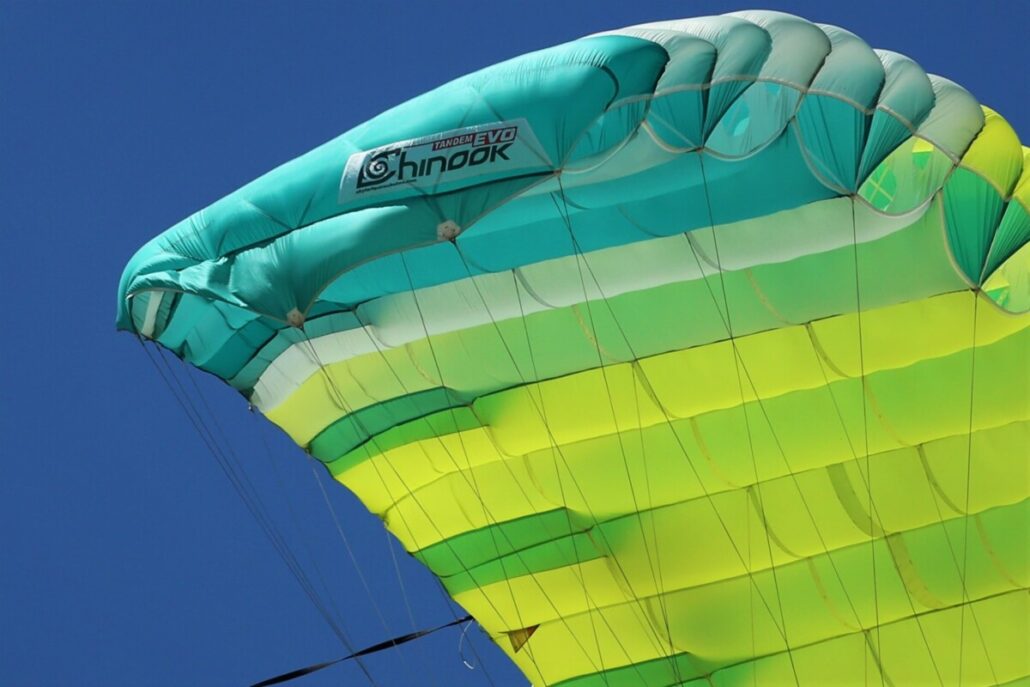

Chinook EVO – modern 9-cell semi-elliptical main canopy for tandem jumps.

Information

The ChinookEVO tandem parachute is double reliability, stability and care for both the passenger and the tandem instructor.
The parachute is designed with a high rate of structural stability in turbulent flow. Distinguished by the simplicity and ease of handling in addition to a stable and soft landing.
V-ribs, combined with a special design of the slider, made it possible to minimize the dynamic overload caused by aerodynamic drag when opening and inflating the parachute.

Since 2018, ChinookEVO has proven itself with excellent flight characteristics and stability in multiplicity of weather conditions in various drop zones around the world.
The ChinookEVO size range is represented by three areas – 285, 315, 345 sq. ft.
The maximum allowable wing loading – 1.6 lb/sq.ft
The line set is made of Vectran material with 750, 1000 and 1500 lb breaking strength.

About the participation of ChinookEVO in the national records of Ukraine

Overview of the ChinookEVO parachute

Why Chinook EVO?

Specs

   EXTREME FACTOR RANGE **33 - 73
MODEL - SIZE
SQ. FT.
PACKING VOLUME *
CUBIC INCHES
WEIGHT
LBS (KG)
ASPECT
RATIO
MIN WINGLOAD
LBS / SQ. FT.
MAX WINGLOAD
LBS / SQ. FT.
ECHINOOK - S (285)92013.4 (6.1)2.760.61.45
ECHINOOK - M (315)100814.5 (6.6)2.760.61.45
ECHINOOK - L (345)109615.6 (7.1)2.760.61.45

* measured according to PIA Technical Standard 104
** for the recommended range wingloads (see EXTREME FACTOR MAP of Skylark canopies)
